1. Project Overview
Targeting large‑scale planting scenarios, this solution builds a lightweight, practical and scalable smart‑farm system with the core principle of "remote pump management, zoned irrigation, precise water‑fertilizer application, and traceable data records". The remote pump‑house controller, single‑channel simple intelligent water‑fertilizer machine and smart irrigation valves are connected to a unified management platform. Administrators can complete daily irrigation and fertilization management via mobile phones or computers.
2. Construction Objectives
‑ Realize remote pump start‑stop, operating‑status viewing and fault alarms to reduce on‑site manual visits. ‑ Implement zoned irrigation according to field plots, corn growth stages and soil moisture conditions to avoid flood irrigation. ‑ Achieve simultaneous water and fertilizer application via the single‑channel water‑fertilizer machine, improving fertilization uniformity and fertilizer utilization efficiency. ‑ Archive irrigation, fertilization and equipment‑operation records to support subsequent planting management and large‑scale expansion.
3. Overall System Architecture
After the management platform issues tasks, the remote pump‑house controller activates the water‑source power supply; smart irrigation valves open by field zones. When top‑dressing fertilization is required, the intelligent water‑fertilizer machine injects fertilizer solution into the main pipeline at preset ratios, realizing coordinated operation of "Pump House — Pipeline Network — Valves — Field Plots".
| Layer | Components | Main Functions |
|---|---|---|
| Management Layer | Mobile / PC‑based Platform | Status viewing, task configuration, remote control, alarm notification, historical‑data query |
| Control Layer | Remote Pump‑house Controller | Pump start‑stop, equipment‑status collection, fault alarm, scheduled / linkage control |
| Water‑fertilizer Layer | Single‑channel Simple Intelligent Water‑fertilizer Machine | Fertilizer‑solution injection, ratio control, scheduled & quantitative water‑fertilizer operations |
| Field Layer | Smart Irrigation Valves | On‑off water supply by zones; support for zoned irrigation, rotational irrigation and task execution |
4. Main Equipment Configuration & Specifications
| Equipment | Recommended Configuration | Application Description | Equipment Parameters |
|---|---|---|---|
| Remote Pump‑house Controller | Configured by quantity of pumps in pump house | Realize remote pump start‑stop, status monitoring, scheduled control and fault alarm. | 4G nationwide cellular network; remote platform control plus local push‑button control; BLE near‑field configuration; MQTT communication protocol; Compatible with variable‑frequency cabinet, soft‑start cabinet, auto‑transformer reduced‑voltage start cabinet and star‑delta start cabinet; Supports connection of optional sensors including liquid‑level meters, pressure gauges and flow meters; Interfaces are determined according to on‑site pumps and control cabinets. |
| Single‑channel Simple Intelligent Water‑fertilizer Machine | Minimum 1 set | Meets basic water‑fertilizer demands for single fertilizer‑solution channel; supports scheduled fertilizer injection. | 4G nationwide cellular network; MQTT communication protocol; single‑channel fertilizer‑solution injection; remote & local operation, scheduled‑quantitative fertilization and task execution; flow rate approx. 3 m³/h, head approx. 800 kPa. |
| 1000 L Fertilizer Tank | Minimum 1 set | Matches the fertilizer applicator for fertilizer‑solution mixing | PE fertilizer tank equipped with 0.75 kW stirring motor. |

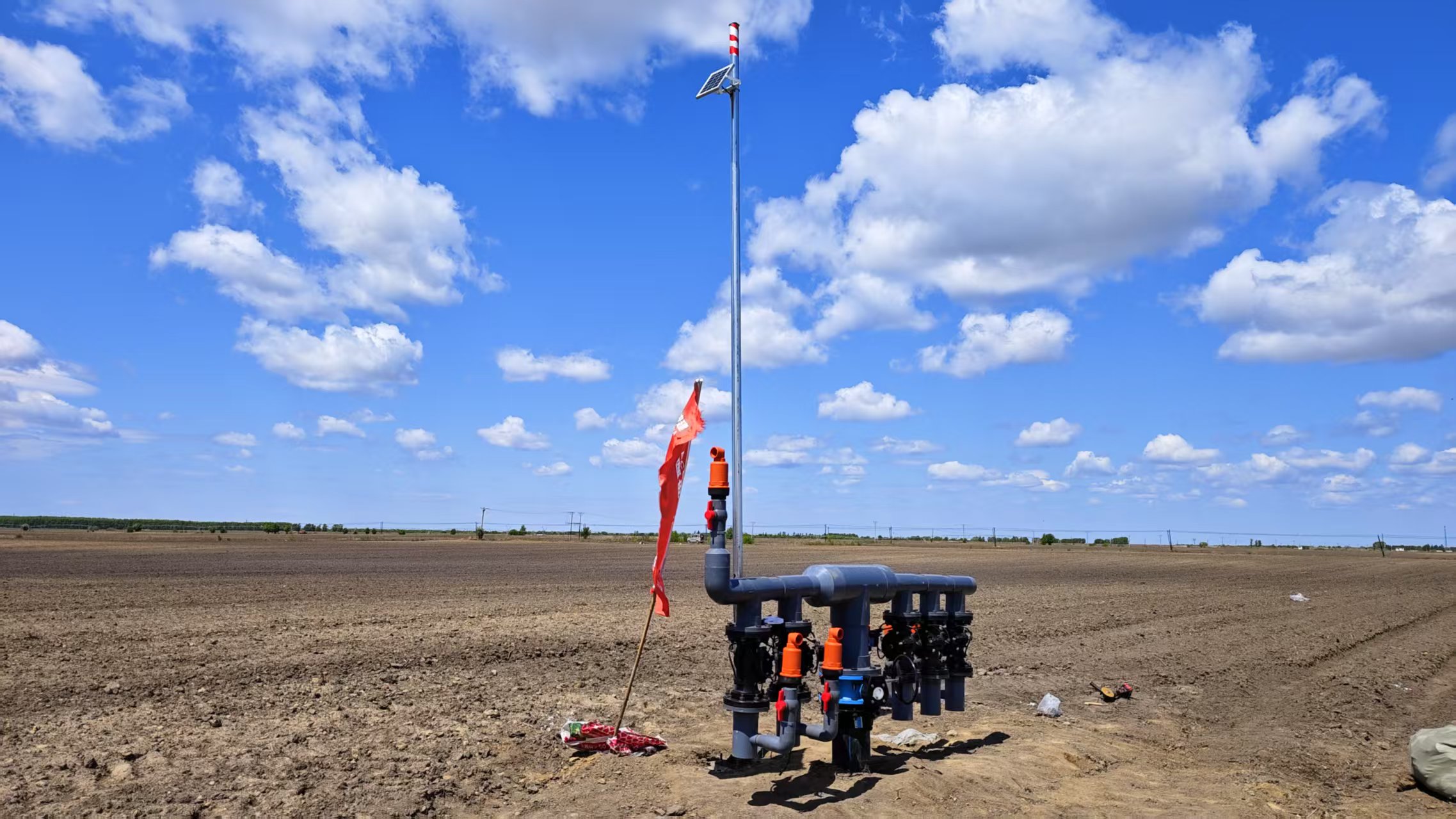

| Smart Irrigation Valve | Configured by irrigation zones, 1 set per 10 mu | Install corresponding valves for each irrigation zone; support remote on‑off and rotational‑irrigation control. | 4G nationwide cellular network; MQTT communication protocol; 90 mm pipe diameter; platform remote switch, scheduled tasks and zoned rotational irrigation; 2700 mAh lithium‑ion battery with solar charging; real‑time water‑pressure monitoring; one‑click constant‑pressure function. |
| Soil‑moisture Monitoring Station | 1 set for each representative plot | Collect real‑time root‑zone soil moisture to provide data basis for irrigation timing, irrigation volume and water‑fertilizer tasks; push alerts upon anomalies. | 4G nationwide cellular network with automatic cloud upload; tubular sensor for soil temperature, moisture and electrical‑conductivity measurement; 3‑layer probes covering different root‑zone depths; sensing part with IP68 protection grade; solar‑powered built‑in battery; mobile‑phone / PC viewing and threshold alarms. Soil Moisture: Measuring range: 0～100 % (m³/m³); Accuracy: ≤3 % (m³/m³) within 0～50 % (m³/m³) Soil Temperature: Measuring range: ‑40 ~ +60 ℃; Resolution ≤0.1 ℃ Electrical Conductivity: Measuring range: 0 |
| Platform & Communication Accessories | 1 set | Provide remote management, task issuing, data logging and alarm services. | 4G device access and platform management; support for device‑status display, task issuing, data query and alarm viewing. Need to confirm whether to connect to the client‑owned platform or the Gewu platform. |
| Installation, Commissioning & Training | Determined on‑site | Complete wiring, commissioning, trial operation and operational training. | Includes on‑site installation, network configuration, function joint‑commissioning, trial‑run and basic‑operation training; construction scope subject to on‑site conditions. |
5. Suggestions on Water‑fertilizer Management for Corn Growth Stages
| Growth Stage | Management Focus | Recommended Operation |
|---|---|---|
| Seedling Stage | Seedling preservation & root promotion; maintain proper soil moisture | Light & frequent irrigation; small‑volume supplementary fertilization subject to seedling conditions. |
| Jointing Stage | Promote stalk and leaf development | Zoned irrigation plus simultaneous water‑fertilizer operations according to top‑dressing plans. |
| Tasseling & Pollination Stage | Guarantee water supply & mitigate impacts of high‑temperature drought | Prioritize irrigation for key plots to avoid water shortage affecting pollination. |
| Grain‑filling Stage | Boost grain plumpness while restraining excessive vegetative‑growth & lodging risk | Supply moderate water subject to soil moisture; control fertilization dosage and timing. |
6. Typical Workflow
‑ Administrators select irrigation zones on the platform and set operation time, irrigation duration and fertilization parameters. ‑ The platform issues commands; the remote pump‑house controller starts pumps and corresponding smart valves open sequentially or simultaneously. ‑ If fertilization is required, the intelligent water‑fertilizer machine injects fertilizer solution into the main irrigation pipeline at preset ratios. ‑ Upon task completion, the system automatically shuts down water‑fertilizer equipment, valves and pumps, and saves execution logs. ‑ Alarms pop up on the platform for power failure, communication breakdown or equipment faults for timely disposal.
7. Agricultural‑ecological Application Benefits
| Benefit Category | Solution Performance |
|---|---|
| Water‑saving & Efficiency Improvement | Zoned, scheduled & demand‑driven irrigation reduces ineffective water consumption and manual workload. |
| Fertilizer‑saving & Quality Enhancement | Synchronized water‑fertilizer delivery cuts fertilizer waste and promotes uniform corn growth. |
| Labor‑saving & Cost Reduction | Remote management of pump‑houses and valves lowers labor input for field patrol and night‑time pump switching. |
| Stable Production | Rapid irrigation deployment in critical growth stages improves resilience against drought and other weather risks. |
| Scalable System | Additional agricultural‑IoT devices such as soil‑moisture stations, weather stations and pest‑monitoring units can be integrated later. |
8. Project Implementation Contents
‑ Site Survey: Confirm water source, pump‑house, electric‑control conditions, main pipeline network and irrigation zones. ‑ Solution Refinement: Confirm equipment quantity, mounting positions, communication modes and pipeline‑reconstruction scope. ‑ Equipment Installation: Install controllers, water‑fertilizer machines, valves and communication accessories. ‑ Joint‑commissioning & Trial‑run: Test remote start‑stop, zoned irrigation, fertilizer injection and alarm functions. ‑ Hand‑over & Training: Train farm administrators on platform operation, daily maintenance and basic fault troubleshooting.
9. Quotation Summary
| No. | Item | Unit | Qty | Unit Price (CNY) | Total (CNY) |
|---|---|---|---|---|---|
| 1 | Remote Pump‑house Controller | Set | |||
| 2 | Single‑channel Simple Intelligent Water‑fertilizer Machine | Set | |||
| 3 | 1000 L Fertilizer Tank | Set | |||
| 4 | Smart Irrigation Valve | Set / Unit | |||
| 5 | Soil‑moisture Monitoring Station | Set | |||
| 6 | Platform & Communication Accessories | Item | To‑be‑confirmed | ||
| 7 | Installation, Commissioning & Training | Item | To‑be‑confirmed | ||
| ‑ | Total Project Price | ‑ | ‑ | ‑ | ‑ |
⚠️ Note: 1 set of valve is recommended for every 10 mu, subject to actual project conditions. The budget only covers hardware‑equipment costs, excluding irrigation pipelines, installation and construction expenses.
10. Remarks
This document provides basic configuration suggestions. Final equipment quantity and quotation shall be determined according to farm acreage, number of irrigation zones, status of water source & pump‑house, pipeline‑network conditions and on‑site construction requirements. Modules for soil‑moisture monitoring, meteorological monitoring, video surveillance and agricultural‑operation management can be expanded according to practical demands.
